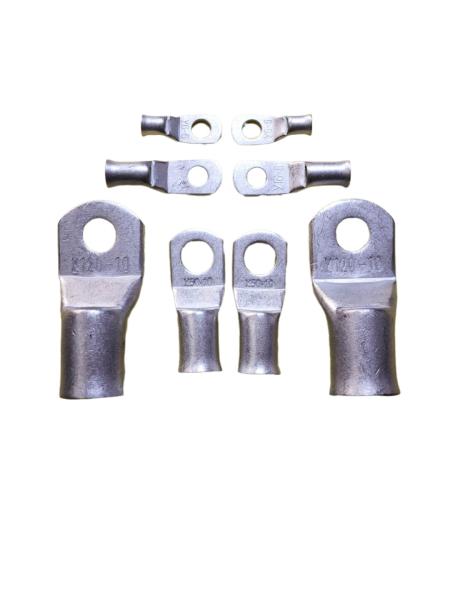

    00701 Copper Terminal Lugs Cable Inspection Hole OEM Coated Tin Plating

    Wire Connecting Bell Mouth Type Tinned Copper Tube Terminals

    Match the temperature rating of the wire to that of the lug to avoid any mishaps later on. Choose the lug depending on the size of the wire. Appropriately connect the lugs with a cable with help of torque wrench.

    Copper Tube Lugs, Tools and Die Sets. Copper tube crimping lugs, connector terminals and crimping tools available at a lower price online.

    Specification:

    00701 Copper Terminal Lugs Cable Inspection Hole OEM Coated Tin Plating

    PART NO TYPE φD φd1 E H B φ d2 L
    00701 6-6 6 4.2 8 7 11 6.4 26
    00702 6-8 8.4 26
    00703 10-6 7 5.0 12 7.5 12 6.4 31.5
    00704 10-8 8 8.4 31.5
    00705 16-6 7.8 5.8 14 10 12 6.4 37
    00706 16-8 8.4 37
    00707 25-8 9.5 7.5 17 10.5 15 8.4 41
    00708 25-10 10.5 41
    00709 35-8 11.4 8.6 17 10.5 16.3 8.4 41.5
    00710 35-10 10.5 43
    00711 50-8 12.6 9.6 19 10.5 18 8.4 46.5
    00712 50-10 10.5
    00713 70-8 15 12 21 11 21.7 8.4 51
    00714 70-10 10.5 51
    00715 95-8 17.4 13.5 25 12 24.7 8.4 58
    00716 95-10 10.5 58
    00717 120-8 19.8 15 26 13 27.8 8.4 62
    00718 120-10 10.5 62
    00719 120-12 13 62
    00720 150-10 21.2 16.5 30 13 30 10.5 67
    00721 150-12 13 67
    00722 240-12 26.5 21.5 40 20 38.5 13 94
    00723 300-16 30 23.5 44 20 42 17 99
    00724 300-20 21 99
    00725 400-16 36.5 28.5 46 25 51 17 113
    00726 400-20 21 113
    00727 500-16 39 30.5 50 27 55 17 123
    00728 500-20 21 123
    00729 630-20 45 35.5 58 32 64 21 143

    PART NO TYPE A B W E D L C
    03601 1.5-3 3.3 1.8 6.5 3.0 5.5 16.0 3.3
    03602 1.5-4 4.5 17.0 4.4
    03603 1.5-5 7.5 19.0 5.3
    03604 2.5-3 4.2 2.3 7.5 5.0 6.0 16.0 3.3
    03605 2.5-4 18.0 4.4
    03606 2.5-5 8.5 19.0 5.3
    03607 2.5-6 9.0 6.0 6.4
    03607 4-4 5.0 3.0 8.5 6.0 6.5 21.0 4.4
    03608 4-5 9.0 6.0 22.0 5.3
    03609 4-6 10.0 7.0 23.0 6.4
    03610 6-5 6.0 4.0 9.5 6.0 6.5 22.0 5.3
    03611 6-6 10.0 7.0 23.0 6.4
    03612 6-8 13.6 10.0 30.0 8.4
    03613 10-5 6.9 4.4 10.5 5.9 9.0 27.0 5.4
    03614 10-6 6.4
    03615 10-8 14.0 9.7 10.0 35.0 8.4
    03616 10-10 16.0 12.0 39.0 10.5
    03617 10-12 18.0 12.5
    03618 16-5 8.0 5.6 11.0 5.9 11.0 29.5 5.4
    03619 16-6 6.4
    03620 16-8 14.0 9.7 38.0 8.4
    03621 16-10 16.0 12.0 42.0 10.5
    03622 16-12 18.0 12.5
    03623 25-5 9.5 7.0 13.5 9.7 10.0 40 5.4
    03624 25-6 6.4
    03625 25-8 8.4
    03626 25-10 16.8 12.0 43.5 10.5
    03627 25-12 18.0 12.7
    03628 35-5 11.0 8.2 15.5 9.7 14.0 41.0 5.4
    03629 35-6 6.4
    03630 35-8 8.5
    03631 35-10 12.0 45.0 10.5
    03632 35-12 18.0 13.0
    03633 35-14 20.0 15.0 50.0 14.7

    Process:

    Selected material , Production, QC inspection ,Packing, Delivery

    00701 Copper Terminal Lugs Cable Inspection Hole OEM Coated Tin Plating

    Certification:

    UL ,TUV, ISO9001, ISO14001, Brand name YL

    The reason why we are brand enterprise is that the attitude we produce products is same as the first day this company established.

    Carefully selected material, strictly QC standards,

    we had kept our quality for more than 20 years, developing for 24 years we are more profession.

    Company profile:

    Suzhou Yuanli Metal Enterprise Co., Ltd was established in 1993 as a wholly Taiwanese invested company,which specializes in the manufacturing of various Ring terminals, Fork terminals, Copper tube terminals, Closed-end terminals, Butt connectors, Blade terminals, Pin terminals, Male and Female terminals.

    After 24years development, we are most famous brand name in China.

    We passed ISO9001 , ISO14001, TUV.

    Some products even have obtained the U.S UL certification, also all kinds of terminals have passed SGS test and meet ROHS requirement.

    OEM service

    If you have drawings,we can produce for you;

    If you have sampels, we can research for you;

    If you have requirements, we can customize for you;

    We would be your reliable partner and will work out the best solution for you !

    Welcome to inquire from us !
