    VE1508 E Copper Insulated Europe Pin Type Terminal 0.25mm LIGHT BLUE

    Ask Lasest Price
    Brand Name : YL
    Model Number : OEM
    Price : $0.06
    • Product Details
    • Company Profile

    VE1508 E Copper Insulated Europe Pin Type Terminal 0.25mm LIGHT BLUE

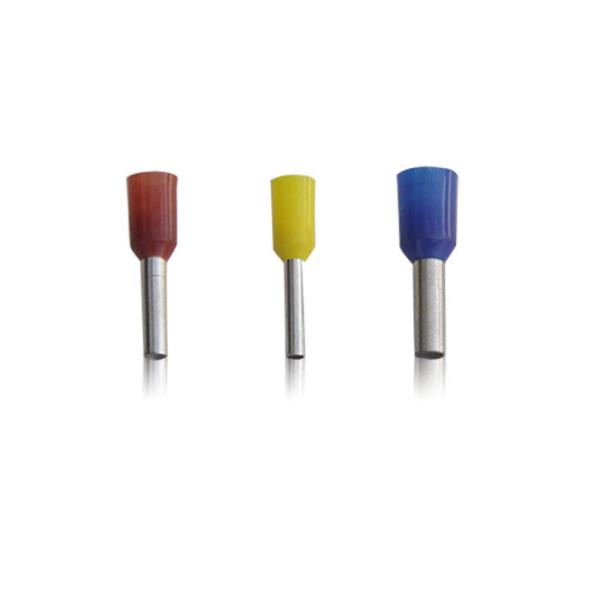

    VE1508 E Copper Insulated Europe Pin Type Terminal

    Manufactured from pure electrolytic copper.
    copper lugs & cable terminals with different stud hole sizes as required.
    lead free electro tin plated to prevent atmospheric corrosion.
    cable lugs are fully annealed to guarantee optimum ductility.

    Specification:

    VE1508 E Copper Insulated Europe Pin Type Terminal 0.25mm LIGHT BLUE

    PART
    NO
    TYPE CONDUCTOR(mm) DIMENSIONS COLOR MAX CURRENT(A) Crimping tools
    L B φC φD
    00901 02506 0.25 10 6 0.7 1.9 LIGHT BLUE 3 YAC-5
    00902 02508 12 8
    00903 03406 0.34 10 6 0.8 1.9 PINK 5
    00904 03408 12 8
    00905 05006 0.5 12 6 1.0 2.6 ORANGE 8
    00906 05008 14 8
    00907 05010 16 10
    00908 07506 0.75 12 6 1.2 2.8 WHITE 10
    00909 07508 14 8
    00910 07510 16 10
    00911 07512 18 12
    00912 10006 1.0 12 6 1.4 3.0 YELLOW 12
    00913 10008 14 8
    00914 10010 16 10
    00915 10012 18 12
    00917 15008 1.5 14 8 1.7 3.5 RED 19
    00918 15010 16 10
    00919 15012 18 12
    00920 15018 24 18
    00921 25008 2.5 14 8 2.2 4.2 BLUE 27
    00922 25010 16 10
    00923 25012 18 12
    00924 25018 24 18
    00925 40010 4.0 17 10 2.8 4.8 GREY 37
    00926 40012 20 12
    00927 40018 26 18
    00928 60012 6.0 20 12 3.5 6.3 GREEN 48 YAC-6
    00929 60018 26 18
    00930 100012 10.0 22 12 4.5 7.6 IVORY 62
    00931 100018 28 18
    00932 160012 16.0 24 12 5.8 8.8 GREEN 88
    00933 160018 28 18
    00934 250016 25.0 30 16 7.3 11.2 BROWN 115
    00935 250018 32 18
    00936 250022 35 22
    00937 350012 35.0 26 12 8.3 12.3 BEIGE 160
    00938 350016 30 16
    00939 350018 32 18
    00940 350025 39 25
    00941 500020 50.0 36 20 10.3 15.0 BLIVE 215
    00942 500025 40 25
    00943 700021 70.0 37 21 13.5 16.0 YELLOW 235
    00944 950025 95.0 44 25 14.7 18.0 RED 255
    00945 1200027 120.0 48 27 16.7 20.0 BLUE 300
    00946 1500032 150.0 58 32 19.5 23.0 YELLOW 350

    Process:

    Selected material , Production, QC inspection ,Packing, Delivery

    VE1508 E Copper Insulated Europe Pin Type Terminal 0.25mm LIGHT BLUE

    Certification:

    ISO9001, ISO14001, Brand name YL

    The reason why we are brand enterprise is that the attitude we produce products is same as the first day this company established.

    Carefully selected material, strictly QC standards,

    we had kept our quality for more than 20 years, developing for 24 years we are more profession.

    Recommend products:

    VE1508 E Copper Insulated Europe Pin Type Terminal 0.25mm LIGHT BLUE

    OEM service:

    If you have drawings,we can produce for you;

    If you have sampels, we can research for you;

    If you have requirements, we can customize for you;

    We would be your reliable partner and will work out the best solution for you !

    Welcome to inquire from us !

    Best regards

    Quality VE1508 E Copper Insulated Europe Pin Type Terminal 0.25mm LIGHT BLUE for sale
